Caprock brand Flash IR Lamps for Workhorse Quartz Elements

We supply Caprock brand replacement infrared IR flash lamps and elements for all Workhorse quartz flash dryers, including Flashback, Blue Falcon, Powerhouse and their conveyor dryers.  There are three common types of quartz IR heater elements used in Workhorse dryers:
1. Medium wave element, with a metal overcap and a ring at the ends
2. Medium wave element with round ceramic end and a threaded stud
3. Spring mounted short wave lamp.

We also supply Caprock brand replacement lamps for all Workhorse screen exposure systems.

Medium Wave Infrared (IR) Flash Elements (Lamps) with Rings

Workhorse Medium Wave

Standard medium wave elements typically measure one-half inch in diameter.  Unlike quartz halogen lamps, these are not sealed at the ends- the filament is attached to the caps to hold them on. with the newer elements, a ring protrudes from the end of the lamp and is used for mounting. These medium wave lamps typically take about thirty seconds to reach their full operating temperature.

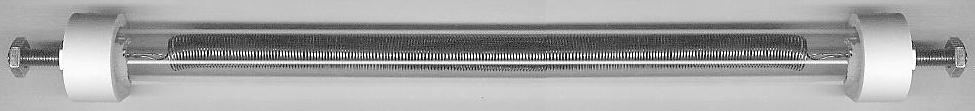

Medium Wave Infrared (IR) Flash Elements (Lamps) with Threaded Studs

For many of the older elements, a threaded stud is used for mounting.  Workhorse discontinued these older style fittings in favor of the rings, forcing you to spend a lot of money to convert your system.  These were used primarily in conveyor dryers.  We can still supply these older style lamps.

Workhorse Medium Wave

Short Wave Infrared (IR) Flash Lamps

Workhorse Medium Wave

Standard short wave lamps have a ceramic fitting and are spring-loaded into the machine. These typically are 3/8 inches in diameter and heat up almost instantly.

We supply Caprock brand compatible IR lamps for these common Workhorse part numbers:
E-0976 • E-0976R • E0976R • E-0976V • E0976V • E-0977 • E-0977R • E0977R • E-0977V • E0977V • E-0039 • E-0040 • E-0041 • 10-22-012 • 10-22012 • 10-22-013 • 10-22013 • 34-20913 • 34-20932R • 34-20951 • 34-20953 • 34-20955 • 34-20957 • 34-20958 • 34-20970 • 34-20970R • 34-20971 • 34-20971R
